JACKS AND PLUGS

FAX: 773 792-2129 SUBMINIATURE PHONE JACKS

* Please visit the product pages on our website for the most up-to-date product information

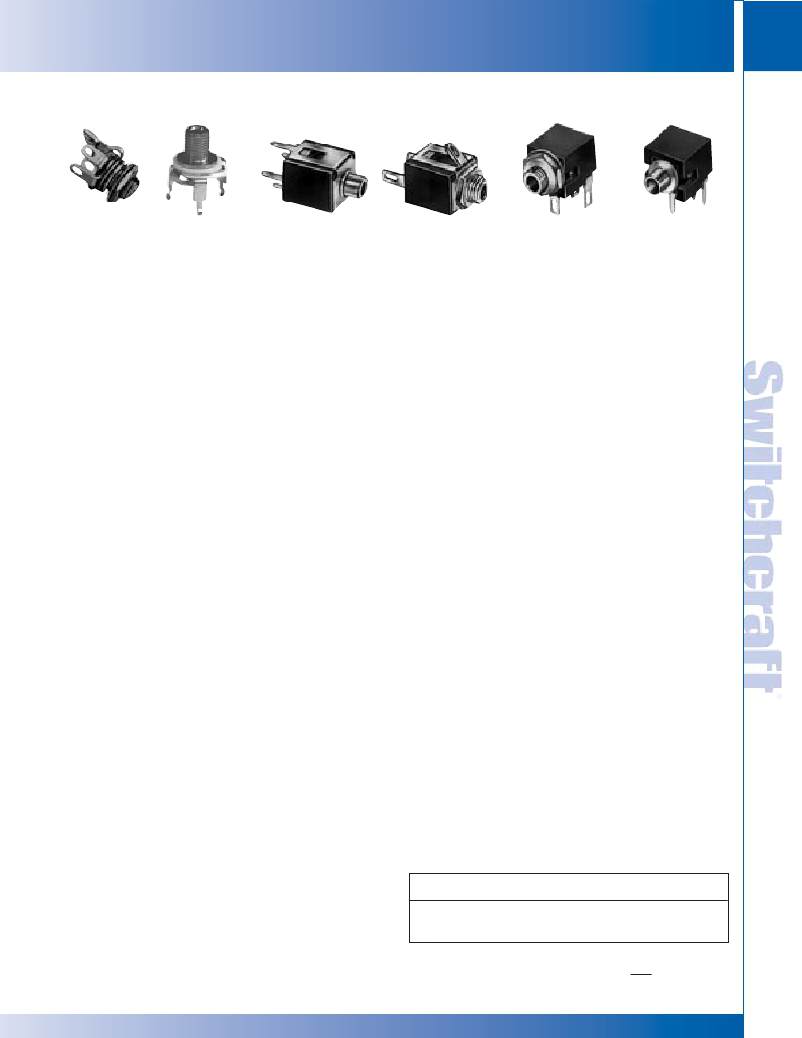

.101" SUBMINIATURE PHONE JACKS

121

TR2A

TR1PC

MDPC2A

MDSL2A

MDSL2ARA

MDPC2ARA

SUBMINIATURE PHONE JACKS, TR2A AND TR1PC

Extremely small, rugged, shunted Micro-Jax ? 2-conductor jack is 1/4 the

size of a standard phone jack and weighs less than 1/20 ounce. Can be

wired for open or closed circuit operation. Internally keyed insulators

interlock all parts and tip springs grip mating plugs positively. Mates

with Switchcraft Micro-Plug ? phone plugs. Jacks mount through

.190" diameter hole in chassis/panels up to .093" thick. For insulated

mounting, a .281" diameter hole and .050" maximum panel thickness

applies. Order insulating washer separately. Number P1617

(flat phenolic washer) and Number P1618 (swedged fiber washer).

Number TR1PC: 2-conductor closed circuit jack with PC

terminals. Open frame and enclosed versions available. Mates with

Switchcraft ? Micro Plug ? numbers 850, 855, and 880.

SUBMINIATURE ENCLOSED PHONE JACKS

Micro-D Jax ? 2-conductor jacks have insulated box construction and

subminiature size.

Number MDPC2A: 2-conductor closed circuit jack with PC

terminals. Mounts to single-, double-sided or multilayer boards either

singly or in rows as close as .344" centers (+/- .01 inches). Bushing is

.10" inside diameter.

Number MDSL2A: Same as MDPC2A except, 1. solder lugs, 2.

bushing is #10-48 threaded (nut and washer supplied), and 3. mount

ing centers are .35" or .313". When mounted on .313" centers, sleeves

or adjacent jacks may be in intimate contact. Mounts through a .203"

diameter hole in chassis/panels up to .063" thick.

SUBMINIATURE RIGHT-ANGLE PHONE JACKS

2-conductor jacks have molded housing which protects all internal

parts. Panel/chassis or PC boards mounting in rows, if desired, on

.351" centers. PC terminals need only .382" behind-panel clearance.

Number MDPC2ARA: PC terminals mount/terminate directly to PC

or multilayer boards. Bushing clears a .156" diameter panel hole.

Number MDSL2ARA: Right-angle solder lugs and #10-48 threaded

bushing for chassis/panel mount. Mounts in .203" diameter hole in

chassis/panels up to .063" thick.

SPECIFICATIONS - MICRO-JAX ? ELECTRICAL:

Contact Resistance: .10 ohms maximum (spring to plug).

Shunt Resistance: .10 ohms maximum.

Dielectric Withstanding Voltage: 250 V AC.

Shunt Tension: 60 grams minimum.

MATERIAL:

Mounting Bushing: Nickel-plated copper alloy.

Insulating Spacers: Rigid plastic.

Springs: Nickel-plated copper alloy. Integral contacts are plated.

Tip, Shunt and Sleeve Terminals: Silver-plated copper alloy.

MECHANICAL - TR1PC:

Life: 10,000 insertion/withdrawal cycles, minimum.

Insertion/Withdrawal Forces: 11 ounces insertion,

11 ounce minimum withdrawal.

ENVIRONMENTAL - TR1PC:

Thermal Range: -55°C to +85°C (non-operating);

-20°C to +65°C (operating).

Thermal Shock: Per MIL-STD-202, method 107.

Humidity: Per MIL-STD-202, method 106.

Salt Spray: Per MIL-STD-202, method 101.

SPECIFICATIONS - MICRO-D JAX

MECHANICAL:

Life: 10,000 insertion/withdrawal cycles minimum.

Insertion/Withdrawal Forces: 11 ounce insertion,

11 ounce minimum withdrawal.

ELECTRICAL:

Contact Resistance: .010 ohms maximum (initial), .020 ohms

maximum (after humidity, durability exposure), .10 ohms

maximum (after salt spray).

Insulation Resistance: 10,000 M ? minimum (initial),

1,000 M ? minimum (after humidity, durability exposure).

Dielectric Withstanding Voltage: 500 V AC maximum.

Contact Rating: .125 A, 125 V AC.

ENVIRONMENTAL:

Thermal Range: -55°C to +85°C (non-operating);

-20°C to +65°C (operating).

Thermal Shock: Per MIL-STD-202, method 107.

Humidity: Per MIL-STD-202, method 106.

Salt Spray: Per MIL-STD-202, method 101.

MATERIAL:

Housing: Glass reinforced plastic. Insulation: Rigid plastic.

Mounting Bushing (Micro-D): Nickel-plated copper alloy.

Mounting Bracket (Right-Angle Micro-D):

Nickel-plated copper alloy.

Tip Spring: Silver-plated copper alloy.

Shunt Terminal: Silver-plated copper alloy.

Sleeve Terminal (Micro-D): Steel, tin-plated.

Sleeve Terminal (Right-Angle Micro-D): Silver-plated

copper alloy.

Hardware (Micro-D): Same as Micro-Jax (MDSL2A).

Hardware (Right-Angle Micro-D): Hex nut, nickel-plated

copper alloy, Number P15331 ; flat washer, nickel-plated

copper alloy S29571 ; not supplied with MDPC2A.

Hardware: Supplied with one, P15331 nickel-plated copper alloy

Part

Jack

Typical

Part Jack Typical

hex nut, and one S29571 nickel-plated copper alloy flat washer.

No. Schem. 1

Mating Plug 2

No. Schem. 1 Mating Plug 2

MATERIAL - TR1PC

Threaded Bushing: Nickel-plated copper alloy.

TR2A

TR1PC

MDPC2A

}

III

850

MDSL2A

MDPC2ARA

MDSL2ARA

}

III 850

Tip Spring: Copper alloy.

Sleeve/Ground Terminal: Copper alloy tin-lead with nickel underplate.

All are 2-Conductor (closed circuit). Note 1.: See Jack Schematics page 79

and 80. Note 2.: See Plugs Section for mating information.

Inch

DIMENSIONS ARE FOR REFERENCE ONLY

(mm)

SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
